BigDog 1/10 Tri Axle Widebody Scale Boat Trailer (RC4ZH0016)

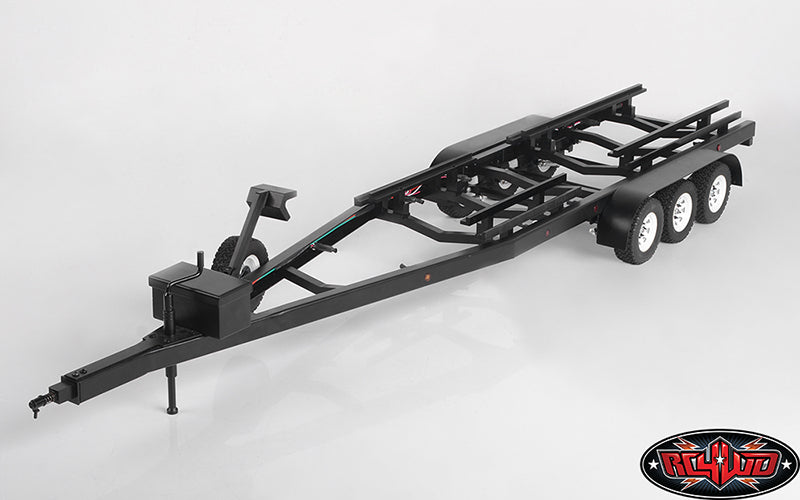

igDog 1/10 Tri Axle Widebody Scale Boat Trailer
Important Note: Due to the size and weight of this product, product will only be shipped by Special Shipping Service (5-10 days). This requires an extra shipping surcharge of $25 to ship anywhere in the US and most international countries due to the size and weight.
Specifications:
- Hand Made Tube Trailer Chassis
- Black Powder-coated Finish
- Trailing Arm Leaf Suspension
- Working Lights
- Working Lift Jack
- Easy Clip Hitch Mount
- Plastic Nylon Boat Hull Runners
- 9v Battery Powered LED Lighting
- Steel Tool Box for Battery and Light Switch
- Length: 44.49in / 1130.0mm
- Width: 10.87in / 276.0mm
- Height: 4.531in / 115.0mm
- Deck Length: 24.0in / 610.0mm
- Weight: 113.3oz / 3212.5g
Shown with RC4WD Gelande II RTR Truck Kit w/D90 Body Set, Survivor Rear Bumper for Gelande and Traxxas Boat for example (Not Included)
Shown with RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set, Survivor Rear Bumper for Gelande and Traxxas Boat for example (Not Included)
What's Included:
- 1x BigDog 1/10 Tri Axle Widebody Scale Boat Trailer
Replacement Parts:
- Stamped Steel 1.55" Stock White Beadlock Wheels (Z-W0035)
- Dirt Grabber 1.55" All Terrain Tires (Z-T0021)
Replacement Hardware:
- Steel Button Head Cap Screws M3 x 6mm (10) (Z-S0651)
- Steel Button Head Cap Screws M3 x 10mm (10) (Z-S0653)
- Steel Flat Head Socket Cap Screw M3 x 6mm (10) (Z-S0648)
- Steel Flat Head Socket Cap Screw M3 x 8mm (10) (Z-S0649)
- Socket Head Cap Screws M3 X 8mm (10)
- Socket Head Cap Screws M3 X 10mm (10) (Z-S0977)
- Socket Head Cap Screws M3 X 16mm (10)
- Socket Head Cap Screws M3 X 20mm (10) (Z-S0714)
- Button Head Self Tapping Screws M3 X 5mm (Black) (Z-S1689)
- Button Head Self Tapping Screws M3 X 10mm (Black) (Z-S1578)
- Nylock Nut M3 (Silver)
- Nylock Nut M4 (Silver) (Z-S1265)
- M3 X 3MM Set Screw (10) (Z-S0124)
- 3mm Black Spacer with M3 Hole (10) (Z-S0806)
- M2.5 E-clip (10) (Z-S0937)
- M4 E-clip (10) (Z-S0919)
- 4x8x3mm Bushing
Notes:
- Fits Traxxas Boat
