DuBro MICRO BELLCRANK SYSTEM (DUB851)
This is a 90° Micro Bellcrank System from Du-Bro.
FEATURES
Nylon and brass construction
Nylon and brass construction

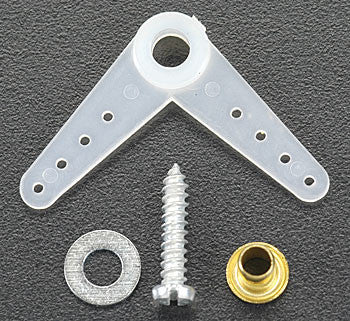

INCLUDES
One 90° (L-shape) nylon arm
One brass grommet (used as a pivot bushing for the nylon arm)
One slotted round head self-tapping screw (2.2x10mm)
One flat washer 6.3 x 3.1 x 0.53mm (ODxIDxThickness)
REQUIREMENTS
A slotted screwdriver
SPECIFICATIONS
Length: 20.48mm each L portion of the arm
Width: 5.3mm widest point of the arm
Height: 3.25mm the pivot portion of the arm
1.12mm arm portion
Diameter: (If applicable
